GH1 LED Headlight 9012

Contact Manufacturer


GH1 9012 LED Headlight Replacement Bulb Waterproof IP67

GH1 Car LED Headlight Bulb Replacement Light is designed for middle price range market, suitable for Wholesaler, Retailer, Trader … in Aftermarket automotive LED light industry. Not only has 40 Watt Power and 6000 Lm bright light it is, but also more reasonable price and durable quality. TRENT – Car LED Headlight Bulb Factory, we provide ODM/OEM production service.

Suitable for :

  • Auto headlight replacement bulb
  • Car Fog Lamp

More than 300% brightness comparing with Halogen Bulb

  • With 40W high power per bulb,GH1 9012 LED headlight replacement bulb can project 6000LM and 6500K white light.
  • With GH1 LED Headlight Conversion Kit, customers can see wider, further and clean view, but no strong dazzling to the opposite cars, because it’s the same focus beam pattern as Halogen bulb.

Extremely easy installation

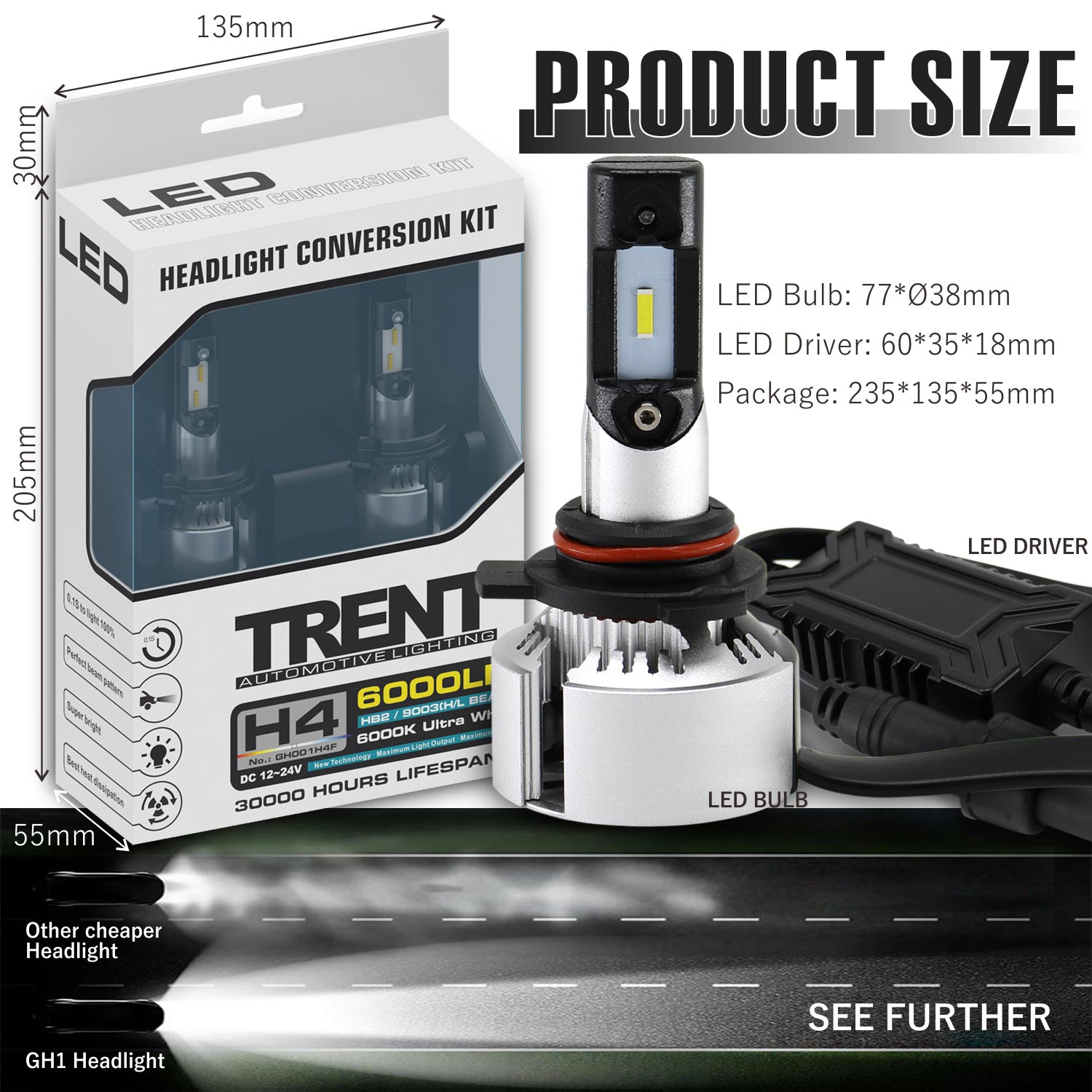

  • Very small dimension, only Ø38*77mm body size, could be installed into more than 95% Vehicles.
  • Adjustable LED socket (almost 360 degree).
  • Non-Polar electronic system, totally plug & Play.

Waterproof IP67 & Anti-fire

  • GH1 LED Headlight Conversion Kit can achieve waterproof rank: IP67, more than 12 hours work in water (our test), no any problem.
  • We tested GH1 LED Headlight Kit in fire and Alcohol, not LED still works well.

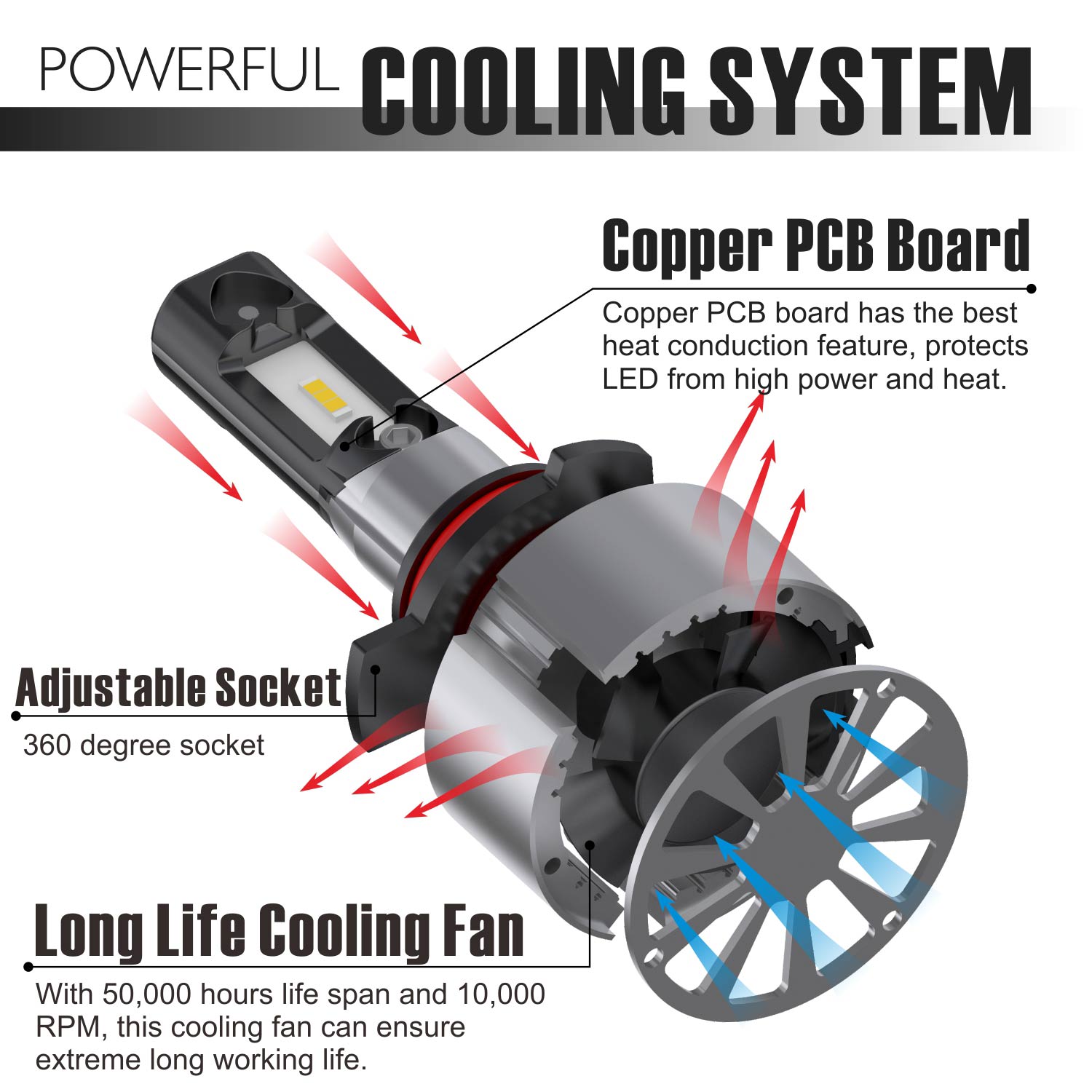

Heat dissipation system

  • Adopts Red Copper PCB board for all of our LED Headlight products, it can transfer heat from LED to aluminum part efficiently.
  • Ultra-efficient 10,000PRM fan and maximum sinks could cool bulb body, make sure LED chip’s safety.

Available Items

  • H4 (HB2/9003) — High/Low Beam Car LED Headlight Kit
  • 9004 (HB1)/ 9007(HB5) [Compatible]— High/Low Beam LED Headlight Kit
  • H13 (9008) — High/Low Beam LED Car Headlight Conversion Kit
  • H7 — Single Beam LED Headlight Replacement Bulb
  • H8/H9/H11/H16JP [Compatible] — Single Beam LED Headlamp
  • 9005(HB3)/9006(HB4)/H10 [Compatible] — Single Beam LED Headlight Kit
  • 9012 — Single Beam Auto LED Headlight Bulb

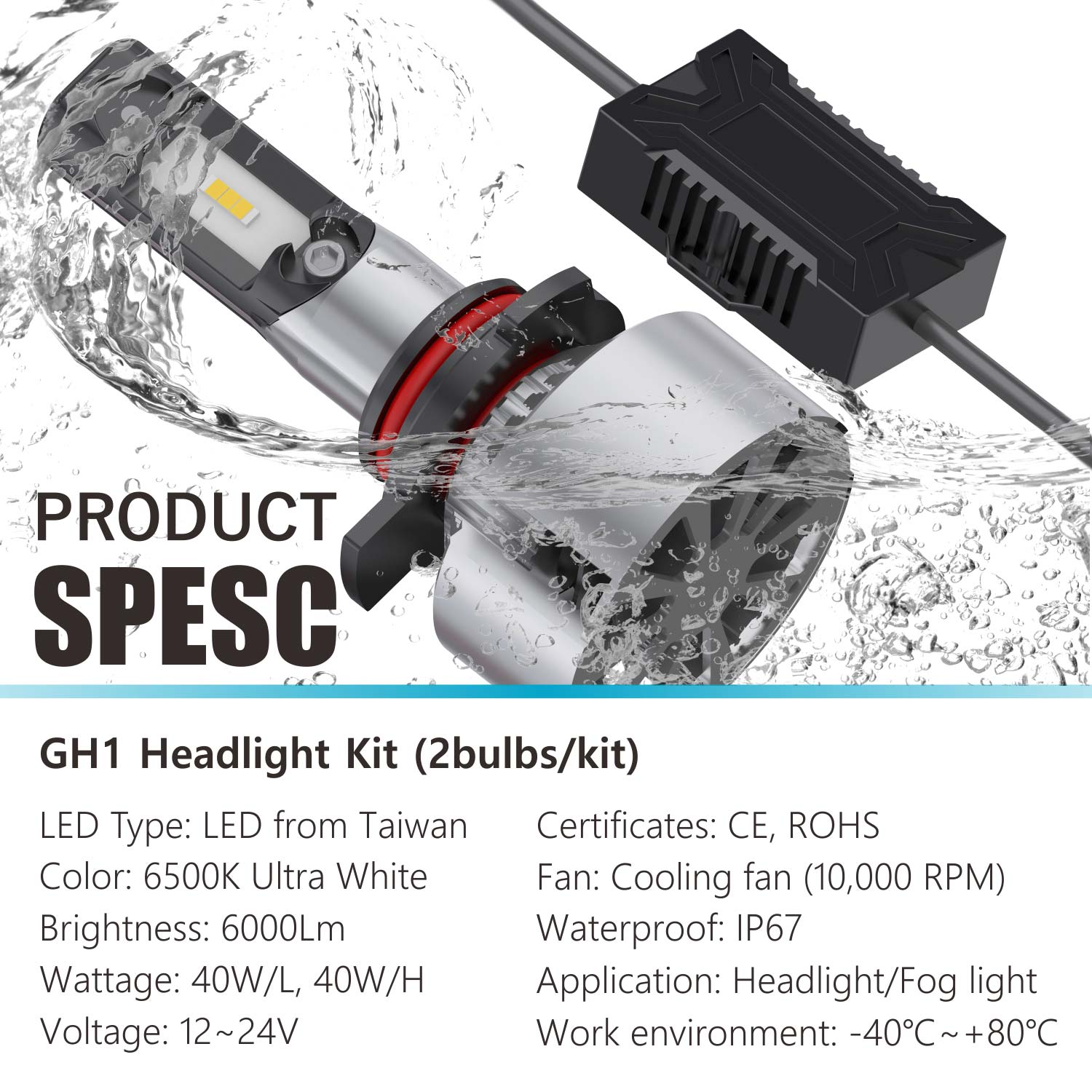

Product Name: GH1 LED Headlamp 9012 Color temperature: 6500K Ultra White
LED: Imported Taiwan LED Voltage: DC12~24V
LED QTY: 2 combined chips per bulb Guarantee: 12Months
Current: Max 2.8A Working environment: -40~80℃
Wattage: 40W/L, 40W/H Waterproof: IP67
Brightness: 6000Lm  Certificates:  CE&ROHS

Car LED Headlight Bulb FactoryCar LED Headlight Bulb Factory

9 years experience in Car LED Replacement Bulb industry — TRENT

TRENT a professional Car LED Headlight Bulb Factory in China, we focuses on producing high quality product, and we provide the below service:

  • Free Customized Design Service.Trent LED has a very expert R&D Team and Art Design Team, can make product upgrade, new product design and Package design for customers.
  • 1 Years Warranty for GH1 Car LED Headlight Bulbs.
  • Professional Technical Support:available in Live Chat and email.

Business Information

  • Cooperation type: ODM or OEM, B2B
  • Manufacturer type: Car LED Light Manufacturer , Car LED Headlight Bulb Factory (Dongguan City, China)
  • Suit forwholesalers retailers trade companies chain store in car part territory and supermarket etc.

Additional information

Socket Type

9012 (HIR2)


Aftermarket Automotive Headlight & Fog Light
SUV, Car, Truck etc.


6000Lm Max/kit


40W Max/bulb


DC 12~24V

Fan speed

10,000rpm (Hydraulic cooling fan)

Light Color

6500k Cool White

Product Lifespan

More than 50,000 Hours


1 pair/Display Box
24 Display Box/master carton
Master Carton size: 44*34*34CM

Delivery term

30~45 days total (20~30 days for preparing materials)


T/T, Western Union, PayPal (30% deposit when order, 70% balance before shipping)
